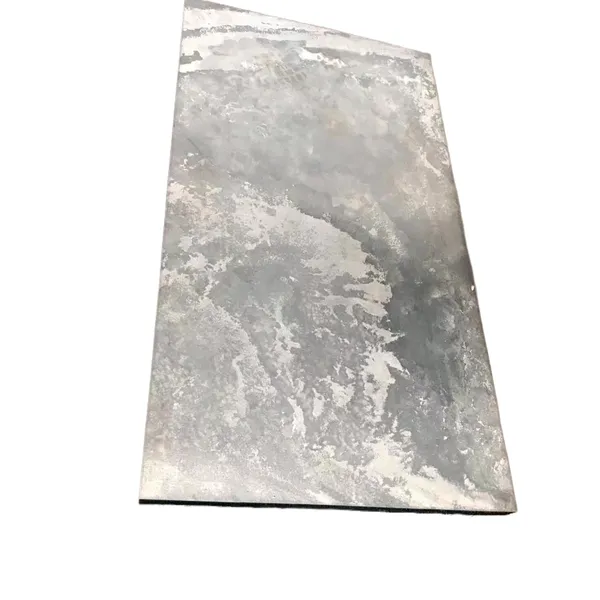

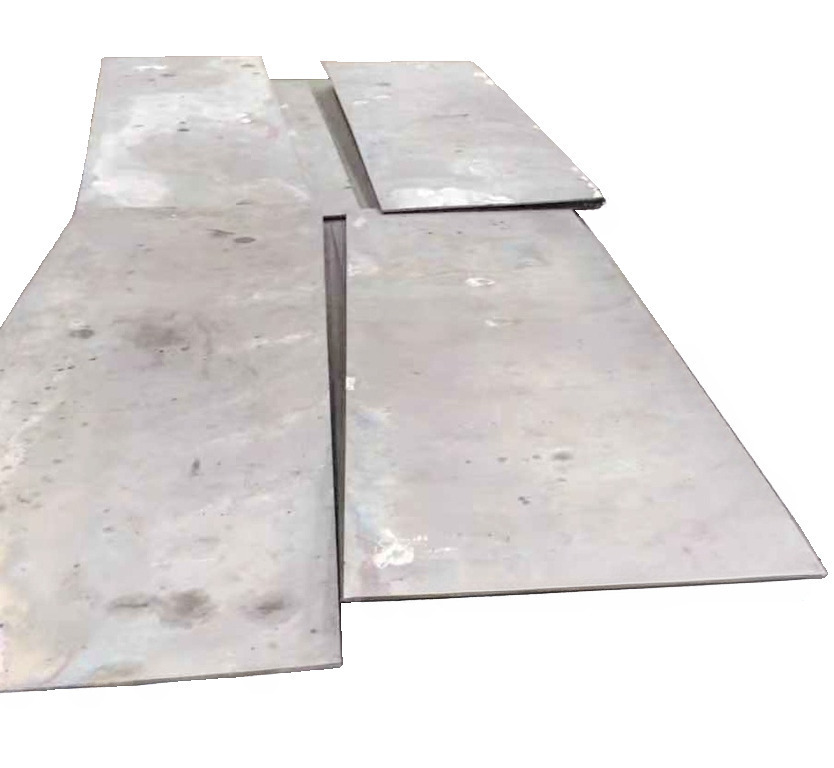

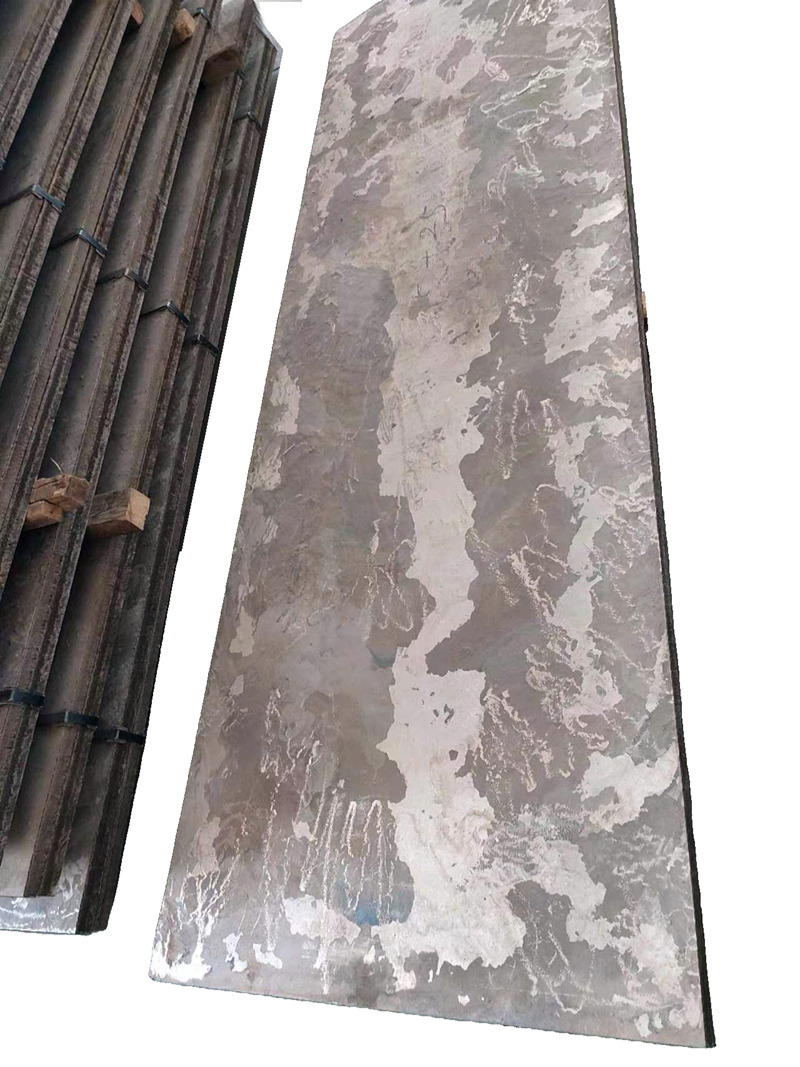

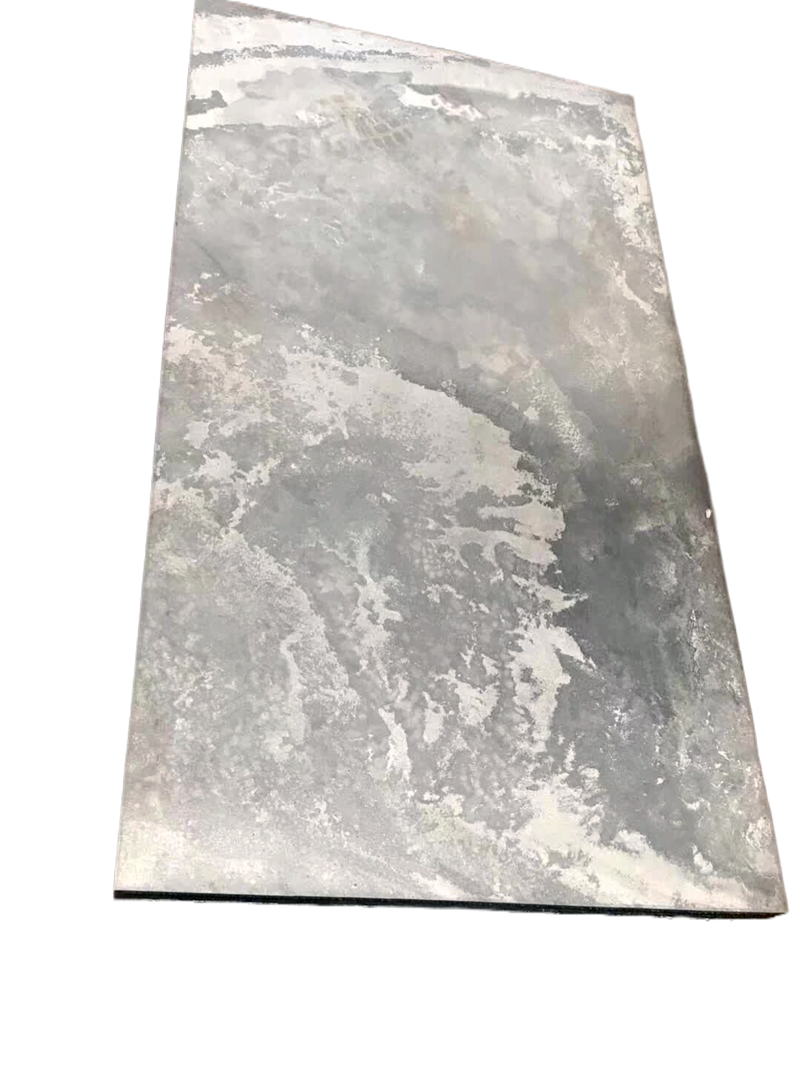

CCO Plate AT-P500

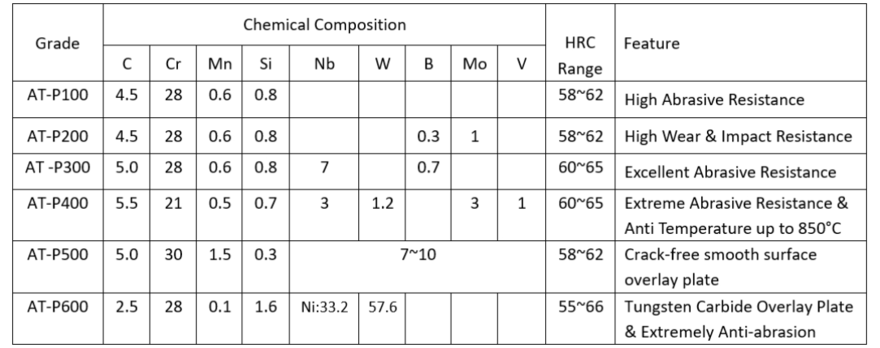

AT-P500 consists chemical content C≥3.5% Cr≥20% & Nb+Mo+Ti+V+W in crack free surface.

It withstands high levels of abrasion and impact, providing a durable and long-lasting solution.

By utilizing advanced welding techniques and high-quality materials, P500 plates can effectively resist cracking and delamination, ensuring optimal performance and longevity.

Thickness of overlayer≤4mm: HRC55-58. Thickness of overlayer>4mm: HRC58-65.

Temperature resistance up to 350ºC (660ºF).

Wear Parts (f.jpg

Description

The smooth surface is maintained by the natural material flow throughout the life of the plate creating smooth laminar flow that doesn't allow micro particles to build causing hang-up/carry back on equipment which is another major cause of production loss.


CCO Plate Spec Table(1).png


AT-P500 is a type of protective material designed to withstand abrasion and impact in various industrial applications.

Besides good anti-abrasion, it also has outstanding Anti Hang-up properties.

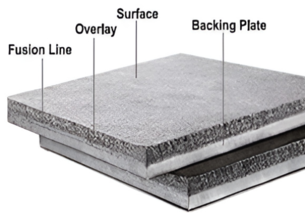

As the special method of production allows for higher percentages of chromium and as it is produced flat with no weld bead.


CFO Plate -详情页.png                            详情页图片 (3).png


The smooth surface of wear plate AT-P500 helps to reduce friction and wear on equipment, extending its lifespan and reducing maintenance costs.

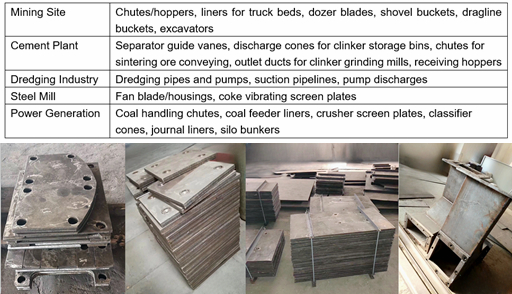

These plates are commonly used in mining, construction and manufacturing industries where equipment is subjected to heavy wear and tear.

Wear plates AT-P500 can much improve the efficiency and performance of machinery by providing protection against damage.

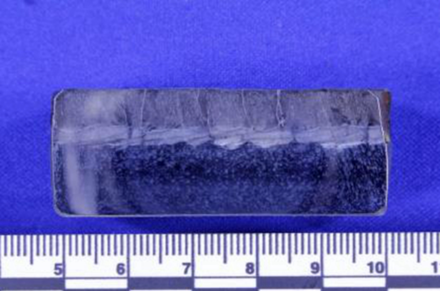

 详情页图片 (4).png详情页图片 (5).png
